CS 496: Lecture 12: Basic Android 2D Graphics

The Android platform provides several mechanisms for rendering 2D graphics including:

In this lecture we will discuss the Canvas/Drawable model for 2D and then next time present a framework for implementing simple 3D graphics using OpenGL.

Drawing directly in the View

The simplest way to incorporate 2D graphics into an application is to utilize the Canvas object through the View's onDraw() method. The Canvas object provides several methods for drawing simple shapes via draw*() methods (e.g. drawLine(), drawCircle(), etc.). The application Activity can then simply use the View to render the graphics. Thus a simple application to draw a circle might be:

BasicDraw.java

    public class BasicDraw extends Activity {

       /** Called when the activity is first created. */
       @Override
       public void onCreate(Bundle savedInstanceState) {
          super.onCreate(savedInstanceState);
          final DrawView drawView = new DrawView(this);
          setContentView(drawView);
       }
    }

DrawView.java

    public class DrawView extends View {
       Paint paint;
       Context c;
       float x;
       float y;

       public DrawView(Context context) {
          super(context);
          c = context;
          paint = new Paint();
          paint.setColor(Color.WHITE);
          paint.setAntiAlias(true);
          x = 100.0f;
          y = 100.0f;
       }

       @Override
       public void onDraw(Canvas canvas) {
          canvas.drawCircle(x, y, 20, paint);
       }
    }

Sprites can also be handled (assuming they are stored in a resource file, e.g. sprite.png file in the res/drawable directory) by adding a field of type Bitmap and initializing it in the constructor via a method in the BitmapFactory class as:

mBitmap = BitmapFactory.decodeResource(getResources(), R.drawable.sprite);

Then the bitmap can be rendered via the drawBitmap() method of the canvas object in the onDraw() method. For example, the image stored in mBitmap can be drawn on the canvas using the paint object assuming mX and mY are fields storing the desired top-left x and y coordinates for the sprite

canvas.drawBitmap(mBitmap, mX, mY, paint);

OnTouch handler

Unlike widgets, e.g. buttons, which typically respond to click events (via onClickListener() methods), graphics use an alternative callback for touch events which allow for the handling of gestures (including swipes and multi-touch gestures like pinch and zoom). Touch handlers are registered in a similar manner via an onTouchListener() method which then must override the onTouch() method. The onTouch method has two parameters - the View which was touched and a MotionEvent object which contains information about where and/or how the view was touched including the number of events that occured (e.g. multitouch gestures) as well as the type of motion that occured. Once any states have been updated (using the information in the touch event), the View can be redrawn by calling the invalidate() method (NOT the onDraw() method directly). Hence a touch callback could be registered for the above activity within the constructor to draw the circle wherever the user touches as:

drawView.requestFocus();
drawView.setOnTouchListener(new View.OnTouchListener() {

   @Override
   public boolean onTouch(View v, MotionEvent event) {
      drawView.x = event.getX();
      drawView.y = event.getY();
      drawView.invalidate();
      return true;
   }
});

Basic animation can be accomplished by simply calling the invalidate() method from within the onDraw() method (although probably a call to Thread.sleep() should be made to prevent the UI from becoming unresponsive). However if animation is desired, a better approach is to create a SurfaceView object in a separate thread to perform the rendering of the graphics.

Drawing in a separate thread

Whenever dynamically changing graphics and/or performance intensive user interaction, e.g. games, are needed, it is better to perform the drawing in a separate thread using a SurfaceView object. This allows the graphics to render as quickly as possible while still allowing the user interface to be responsive.

Sprite class

First we will create a simple Sprite class for the bitmap objects we will be rendering containing fields for its position, velocity, and bitmap stored as a resource named ball_sprite.png as:

public class Sprite {
   private float mX;
   private float mY;
   private int mDx;
   private int mDy;
   private Bitmap mBitmap;

   // Constructor
   public Sprite(Resources res, int x, int y) {
      // Get bitmap from resource file
      mBitmap = BitmapFactory.decodeResource(res, R.drawable.ball_sprite);

      // Store upper left corner coordinates
      mX = x - mBitmap.getWidth()/2;
      mY = y - mBitmap.getHeight()/2;

      // Set random velocity
      Random rand = new Random();
      mDx = rand.nextInt(7) - 3;
      mDy = rand.nextInt(7) - 3;
   }

   // Render bitmap at current location
   public void doDraw(Canvas canvas) {
      canvas.drawBitmap(mBitmap, mX, mY, null);
   }

   // Update (time-based) position
   public void update(long elapsedTime) {
      mX += mDx * (elapsedTime / 20f);
      mY += mDy * (elapsedTime / 20f);
      checkBoundary();
   }

   // Collision detection
   private void checkBoundary() {
      // Left or right boundary
      if (mX <= 0) {
         mDx *= -1;
         mX = 0;
      } else if (mX + mBitmap.getWidth() >= Panel.mWidth) {
         mDx *= -1;
         mX = Panel.mWidth - mBitmap.getWidth();
      }

      // Top or bottom boundary
      if (mY <= 0) {
         mDy *= -1;
         mY = 0;
      } else if (mY + mBitmap.getHeight() >= Panel.mHeight) {
         mDy *= -1;
         mY = Panel.mHeight - mBitmap.getHeight();
      }
   }
}

Note the class contains a draw method which renders the bitmap at the current position, an update method to modify the position (time) based on the velocity, and a collision detection method to keep it within the extents of the window (flipping the directions when an edge is reached).

Subclass SurfaceView

The next step is to create our View class by subclassing SurfaceView and implementing the SurfaceHolder.Callback interface (registering itself as the callback) which will contain a list of Sprite objects, a field for the total number of sprites (for efficiency), a paint object field, and fields for its current extents.

public class Panel extends SurfaceView implements SurfaceHolder.Callback {
   private ArrayList<Sprite> mSpriteList = new ArrayList<Sprite>();
   private int mNumSprites;
   private Paint mPaint;
   public static float mWidth;
   public static float mHeight;


   public Panel(Context context) {
      super(context);
      getHolder().addCallback(this);
      mPaint = new Paint();
      mPaint.setColor(Color.WHITE);
   }

The SurfaceHolder.Callback interface requires us to override three methods to handle when the surface is created, changed (which simply stores the new extents), or destroyed. These methods have the following forms

@Override
public void surfaceCreated(SurfaceHolder holder) {
   // TODO Auto-generated method stub
}

@Override
public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
   // Store new extents
   mWidth = width;
   mHeight = height;
}

@Override
public void surfaceDestroyed(SurfaceHolder holder) {
   // TODO Auto-generated method stub
}

We will define these methods once we have created a class for our rendering thread.

Rendering thread

In order to maintain usability of the application, we will render our graphics in a separate thread. Hence we will subclass the Thread class and call the necessary update and render methods in the run() method. In order to access the Canvas object for drawing, we will need to obtain a lock on the Canvas object from the SurfaceHolder that contains our drawing surface (being sure to release the lock once drawing is completed). Furthermore, we can produce time-based animations by retrieving the current system time and computing an elapsed time between render passes. Thus our thread class might be:

public class ViewThread extends Thread {
   private Panel mPanel;
   private SurfaceHolder mHolder;
   private boolean mRun = false;
   private long mStartTime;
   private long mElapsed;

   public ViewThread(Panel panel) {
      mPanel = panel;
      mHolder = mPanel.getHolder();
   }

   // Set current thread state
   public void setRunning(boolean run) {
      mRun = run;
   }

   @Override
   public void run() {
      Canvas canvas = null;

      // Retrieve time when thread starts
      mStartTime = System.currentTimeMillis();

      // Thread loop
      while (mRun) {
         // Obtain lock on canvas object
         canvas = mHolder.lockCanvas();

         if (canvas != null) {
            // Update state based on elapsed time
            mElapsed = System.currentTimeMillis() - mStartTime;
            mPanel.update(mElapsed);

            // Render updated state
            mPanel.doDraw(canvas,mElapsed);

            // Release lock on canvas object
            mHolder.unlockCanvasAndPost(canvas);
         }

         // Update start time
         mStartTime = System.currentTimeMillis();
      }
   }
}

Use thread class in SurfaceView

We can now add a thread field to our SurfaceView object as

private ViewThread mThread;

and initialize it in the constructor with

mThread = new ViewThread(this);

We now add code to the surfaceCreated() method to start the animation thread as:

public void surfaceCreated(SurfaceHolder holder) {
   // Create and start new thread
   if (!mThread.isAlive()) {
      mThread = new ViewThread(this);
      mThread.setRunning(true);
      mThread.start();
   }
}

We also want to be sure to stop the thread whenever the surface is destroyed as:

public void surfaceDestroyed(SurfaceHolder holder) {
   // Stop thread
   if (mThread.isAlive()) {
      mThread.setRunning(false);
   }
}

Next we add update and drawing methods which simply iterate through the sprite list and call the update/draw methods for each sprite object. However since this is done in a separate thread, we need to ensure that the list is not concurently being updated (i.e. new sprites are being added while current ones are being rendered). Thus we will place the iteration loop inside a synchronized() block giving

// Update all sprites in list
public void update(long elapsedTime) {
   synchronized (mSpriteList) {
      for (Sprite sprite : mSpriteList) {
         sprite.update(elapsedTime);
      }
   }
}

// Draw all sprites in list
public void doDraw(Canvas canvas, long elapsed) {
   canvas.drawColor(Color.BLACK);
   synchronized (mSpriteList) {
      for (Sprite sprite : mSpriteList) {
         sprite.doDraw(canvas);
      }
   }
}

Finally, we can register a touch callback for the SurfaceView by adding an onTouchEvent() method which will get the location of the touch (from the MotionEvent parameter) and (thread safely) add a new sprite to the list (using the same bitmap resource) as

@Override
public boolean onTouchEvent(MotionEvent event) {
   synchronized (mSpriteList) {
      mSpriteList.add(new Sprite(getResources(), (int) event.getX(), (int) event.getY()));
      mNumSprites = mSpriteList.size();
   }
   return super.onTouchEvent(event);
}

Note that we avoid continually retrieving the number of sprites in the list (which would be done for each rendering pass) by simply updating a local field whenever a new sprite is added.

Drawing text

Text can easily be displayed in a Canvas object using the drawText() method. Hence at the end of the doDraw() method for our SurfaceView object above we could add

canvas.drawText("FPS: " + Math.round(1000f / elapsed) + " Sprites: " + mNumSprites, 10, 10, mPaint);

to display the current FPS being achieved as well as the number of sprites currently on the screen at the top of the window (i.e. at position 10,10).

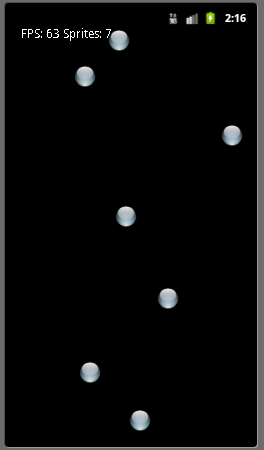

Thus the application would appear as
