Program Due:

Milestone 1: Tues, Oct 13th by 12:30/2:00 PM 10% - This milestone should demonstrate the basic geometry of the scene (placeholder objects can be used where more complex objects will eventually be located). An orthographic “birds-eye” view is acceptable at this point to see the entire room.

Milestone 2: Thur, Nov 12th by 12:30/2:00 PM 10% - This milestone should contain most of the geometry that will appear in the final scene. First person camera controls should allow movement throughout the room (but not necessarily with collision detection). Lighting effects should be present.

Final Presentation: 80% - Your final project will be demonstrated during the final exam period for your section (see the schedule). MAKE SURE to complete the self-evaluation form and submit it with your project. Use the MAKE_ZIP build option, rename the zip file with your YCP user name, and upload it to the shared Google Drive for this course. Late assignments will NOT be accepted.

Evaluation Form Word document for the self-evaluation form.

Getting Started

Download CS370_Project.zip, saving it into the assignment directory.

Double-click on CS370_Project.zip and extract the contents of the archive into a subdirectory called CS370_Project

Open CLion, select Open or Import from the main screen (you may need to close any open projects), and navigate to the CS370_Project directory. This should open the project and execute the CMake script to configure the toolchain.

The skeleton project is primarily an empty source. You may add any additional header files and resources (e.g. images, shaders, models) as desired.

Programming assignment

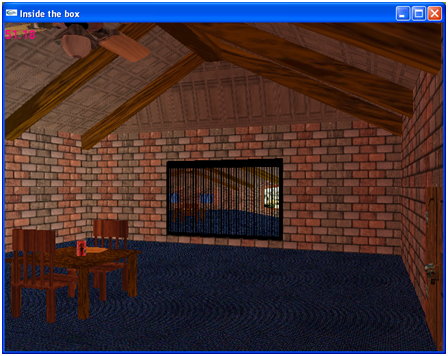

The object of this project is to do a “walk through” of a room. You should create a room with various texture mapped objects and allow the user to “walk through” the room to view it from different locations/orientations (the basis of a fps).

• The room should have a floor, ceiling, and four walls (but need not be square).

  • Put “carpet” on the floor.
  • The other walls can simply be “painted” a solid color.

• One of the walls should have a door made of “wood”.

  • It can be a slab door.
  • Hinges and a door knob are optional.

• An adjacent wall should have a window with a mini-blind.

  • Use ‘O’ (or ‘o’) to open and close the blinds revealing an outdoor scene through the window. (Hint: Use a texture mapped rectangle for the window pane.)

• The opposite wall should have a large mirror that “reflects” the room.
• The fourth wall should have a work of art hanging on it.

• Place a “wooden” table and chairs in the center of the room.

  • Place a soda can on the table.
  • Place a translucent glass partially full of soda on the table.
  • Place a bowl of “spherical” fruit on the table.

• Add a rotating ceiling fan on the ceiling.

  • A wall switch should toggle the fan via ‘F’ (or ‘f’). You do not need to worry about proximity to the switch to operate it.

• Add a light located at the center of the ceiling - roughly where the ceiling fan is.

  • A wall switch should toggle the light via ‘L’ (or ‘l’). You do not need to worry about proximity to the switch to operate it.

• The first person camera view should be able to

  • ‘W’ (or ‘w’) - move forward in the CURRENT direction
  • ‘S’ (or ‘s’) - move backward in the CURRENT direction
  • ‘A’ (or ‘a’) - turn left (azimuth)
  • ‘D’ (or ‘d’) - turn right (azimuth)
  • ‘Z’ (or ‘z’) - look up (elevation)
  • ‘X’ (or ‘x’) - look down (elevation)

• The camera should remain at a fixed height (i.e. “eye level”).
• The camera should not leave the room (although you do not need to worry about object avoidance within the room).
• The field of view and frustum distance should be fixed relative to the camera.
• All animations should be system independent, i.e. should be time-based, including fan rotation, blinds opening, etc.
• All effects should be done in programmable shaders.

Hints

START EARLY! You should be developing the scene incrementally such that you always have a working program prior to adding an additional feature.

Some embellishment suggestions:

• Implement “mouselook” typical of standard fps (along with ‘a’ and ‘d’ strafing)
• Use a 3D modelling program such as Blender to create more sophisticated geometry
• Use enhanced programmable shader effects to add effects beyond default pipeline behavior.

Most of all - HAVE FUN! and be creative with this project.

First Person Camera

In order to accomplish a first person camera where the controls move or rotate the camera along the viewing direction, we will use an approach similar to the spherical coordinates discussed in Lab 6. We will use an azimuth angle, θ, to create the center vector relative to the eye vector which will define a vector for the direction the camera is facing. Thus when we move forward or backward, we will simply update eye along this direction (with a corresponding update of center). Rotation will simply update center via θ since it does not involve a change in camera position.

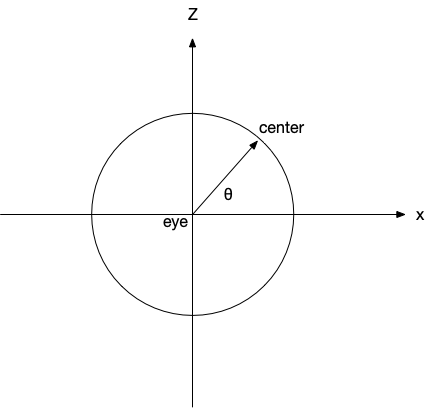

Thus from a top down view

Thus we can compute the coordinates of center (whenever we adjust eye or change θ) as

center_x = eye_x + cos(θ)

center_y = eye_y

center_z = eye_z + sin(θ)

To move along the current direction, we can compute a direction vector (component-wise in x and z) as

dir = center - eye

Then we can update eye along dir by an amount Δ (component-wise in x and z) as

eye = eye + dir*Δ

which will then require a corresponding update in center as described above.

Adjusting the camera to look up/down can be done by adjusting the y component of center with an elevation angle (typically without adjusting the y component of eye).

Grading Criteria

The program MUST compile to receive any credit (so develop incrementally).

The program will be graded based on the number of features implemented along with the creativity used to implement each one.

Compiling and running the program

You should be able to build and run the program by clicking the small green arrow towards the right of the top toolbar.

To quit the program simply close the window.

Submitting

At the top right of the CLion window, expand the drop down menu to change the configuration to MAKE_ZIP and click the green arrow

You may see a configuration dialog, simply click the Run button and Continue Anyway in the Change Configuration Settings popup dialog. This should generate a solution.zip file in the project root directory. Rename solution.zip with your YCP username.

DO NOT submit the project through Marmoset. Manually upload your zip file to the shared Google drive.

You are responsible for making sure that your submission contains the correct file(s).
